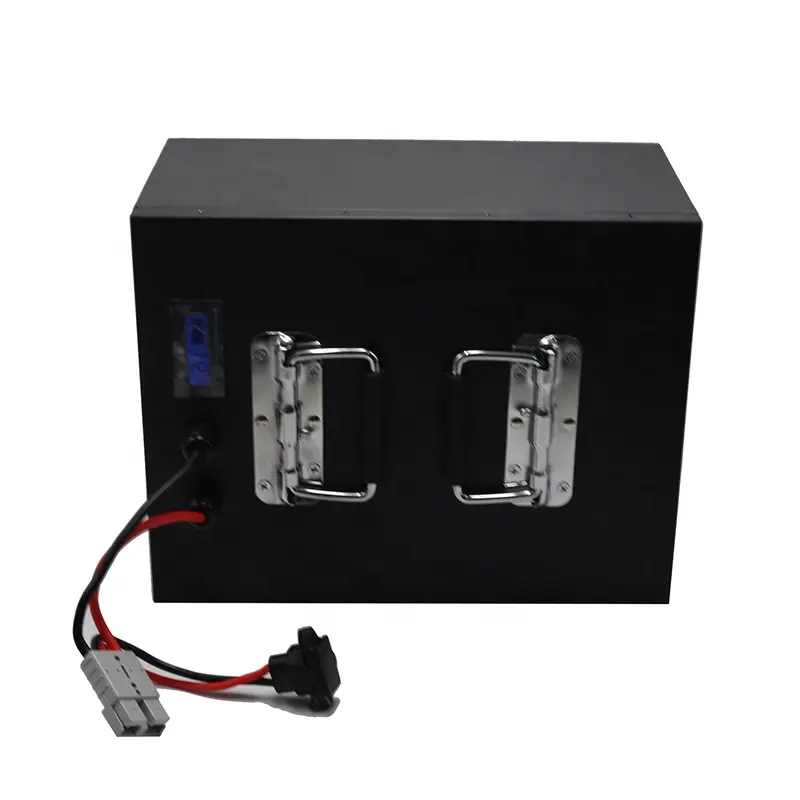

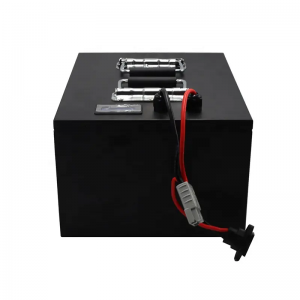

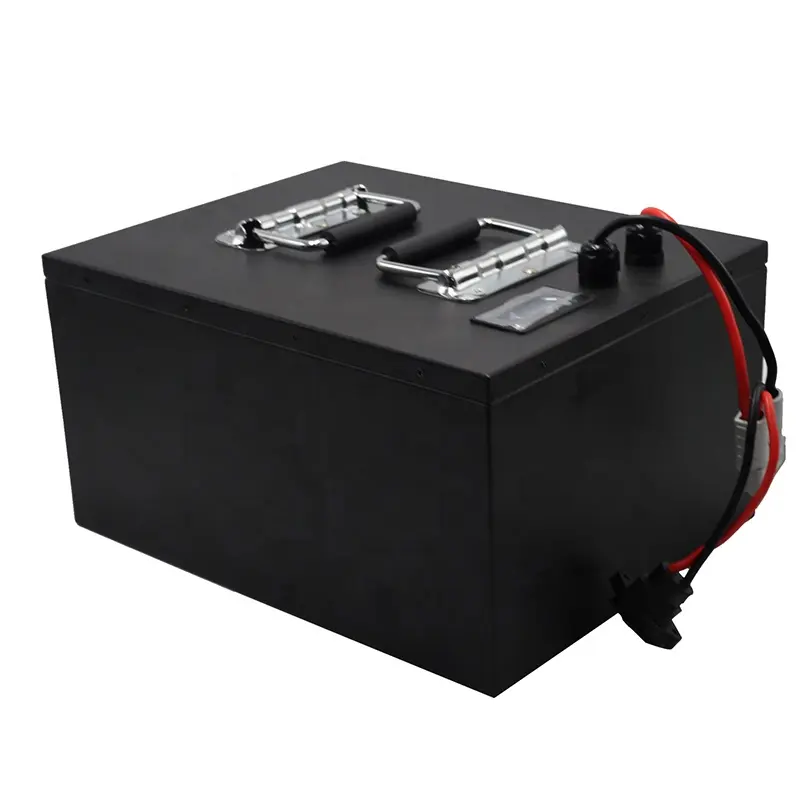

Pacchetto personalizzato di ioni di litio della batteria del veicolo elettrico del pacchetto 72v 60ah della batteria LiFePO4 per le automobili di EV

2023-06-06 02:13

specificazione

Marchio	TUTTO IN UNO
Modello	AIN7260
Garanzia	5 anni
Voltaggio nominale	76,8 V
Capacità nominale	[email protected]/customize
Energia	4416Wh
Resistenza interna	≤50mΩ
Ciclo di vita	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Autoscarica	≤3,5% al mese a 25 ℃
Tensione di carica massima	87.6 V
Modalità di ricarica	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Corrente di carica	30A
Corrente di carica max	60A
Corrente di scarica	30A
Max. discharge Continuous Current	60A
Max.Pulse Current	120A(<3S）
Tensione di interruzione di scarica	60V
Temperatura di carica	Da 0 ℃ a 45 ℃ (da 32 ℉ a 113 ℉) a 60 ± 25% di umidità relativa
Temperatura di scarico	Da -20 ℃ a 60 ℃ (da -4 ℉ a 140 ℉) a 60 ± 25% di umidità relativa
Temperatura di conservazione	Da 0 ℃ a 45 ℃ (da 32 ℉ a 113 ℉) a 60 ± 25% di umidità relativa
Resistenza alla polvere d'acqua	IP55
Cella e formato	LFP  60AH 24S1P/customize
Involucro	Metal Case
Dimensione (L * W * H * TH)	personalizzare
Peso	50kg
terminale	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
Metodo di carica	CC / CV
Terminal Type	M6 or Anderson or another bolt screw/customize
Certificato	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

Promemoria

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

Applicazione

La nostra fabbrica

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

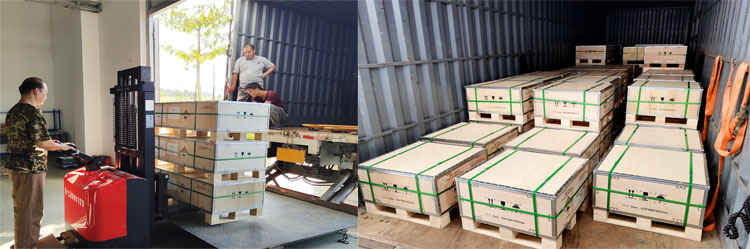

Imballaggio e spedizione

Imballaggio

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

spedizione

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



FAQ

D: Come devo pagare? Quali modalità di pagamento accettate?
A: T/T, PayPal, Western Union.

D: L'ordine del campione è accettabile?
R: Sì, per la maggior parte delle batterie, gli ordini di campioni per testare la qualità sono ragionevoli e accettabili.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Q: What is your warranty?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. Per danni causati, come rigonfiamento/saldatura della batteria, pacco batteria senza protezione BMS causato dalla ricarica.
