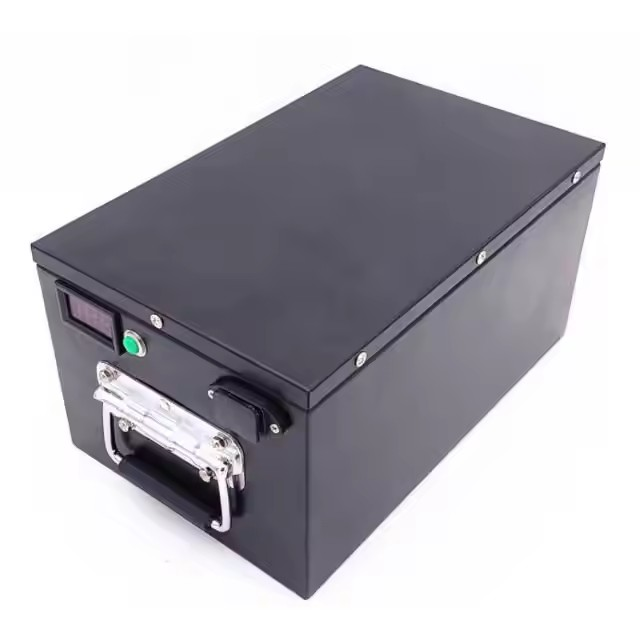

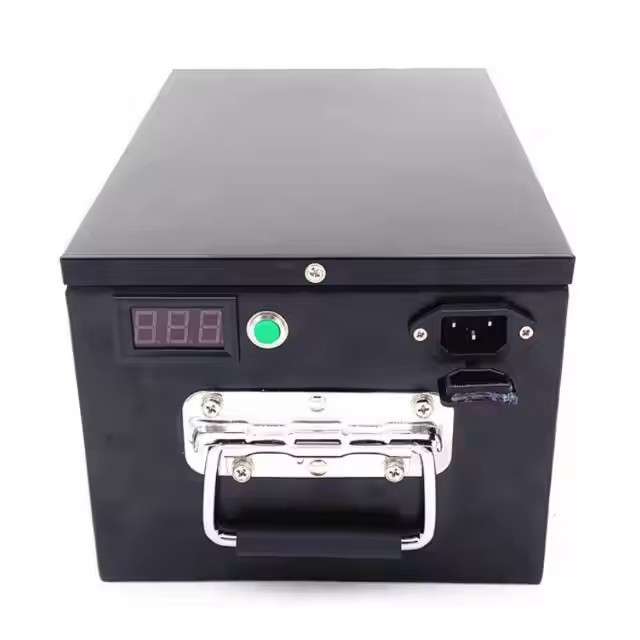

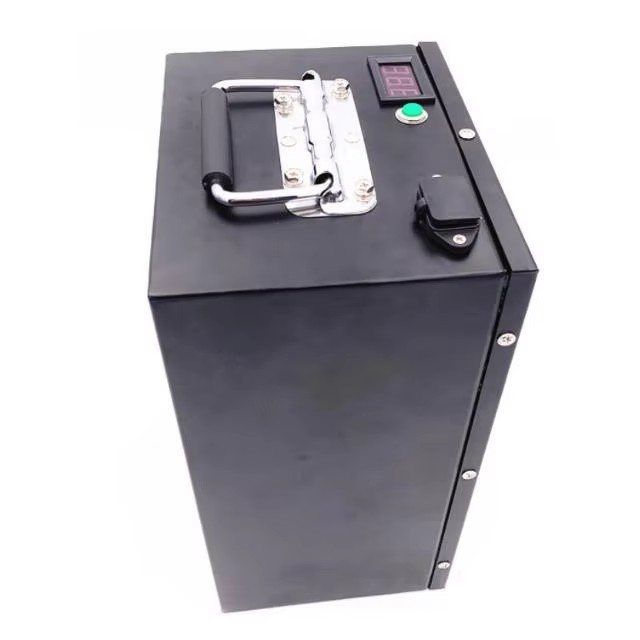

60V 100Ah LiFePO4 Lithium Ion Battery For AGV Smart Robot

2025-01-13 05:29

specificazione

Articolo	specificazione	Nota
Voltaggio nominale:	60V	Any voltage can be customized
Nominal Capacity:	100Ah	Any capacity can be customized
Discharge Cut-Off:	47.5V
Charge Cut-Off:	69.3V
Charge Current:	30A	Free customization service
Cont. Discharge:	100A	Free customization service
Peak Discharge:	200A	Free customization service
Impedenza:	≤200 mΩ
Charge Temperature:	0℃ - 45℃
Discharge Temperature:	-20℃ - 60℃
Charge Method:	CC / CV
Life Cycle:	6000 times	80% DOD, Max. 100% DOD
BMS:	With BMS
Dimensione:	Flexible	Any dimension can be customized
Peso:	120KG

Caratteristiche

• More than 6000 Cycles
  • Battery modules available for parallel and series for higher voltage and capacity
  • BMS Passive cell balance function
  • IP66, IP67, water proof, dust proof, Temperature monitoring
  • Customization for Size and Discharge and charge rate
  • Free of Maintenance, contains no poisonous material
  • No leakage, no hazardous chemistry
  • Quick delivery
  • Lighter in weight, smaller in size to save space.
  • Powerful to increase robust operation for your marine boat or RV
  • Fast charging and high power discharge rate available
  • No need to add water nor worry about maintenance.
  • We offer 5 years regular warranty and it can be extended up to 10 years.

BMS integrato

Articolo	Content	Criterion
Over charge Protection	Over charge detection voltage	3.6~4.25V
	Over charge detection delay time	0.1 S ~ 6S
	Over charge release voltage	3.5~4.25V
Over discharge protection	Over discharge detection voltage	2.0~3.3V
	Over discharge detection delay time	0.1 S ~ 6S
	Over discharge release voltage	2.1~3.4V
Caricare Protezione da sovracorrente	Charge Over current detection current	1~100A
	Charge Over current detection delay time	0.02S~ 6S
Scarico Over current protection	Discharge Over current detection current	1~600A
	Discharge Over current detection delay time	0.02S~ 6S
Corto protection	Short protection detection delay time	100 u S
	Detection condition	B+ P-0.2 Omh
	restore	Cut off load
Interior Resistance	Main loop electrify resistance	2 OMh(50A)
Current consumption	Current consume in normal operation	1.5mA Type
Current consumption	Current consume in sleep operation	2 uA Type

Note BMS is customizable. More advanced functions available, such as Bluetooth, RS485, CAN, Autocratically Heating functions, High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!

LIFEPO4	Dimensioni	Peso	with BMS	RS485/Bluetooth	Cycles	Garanzia
60V 10AH	195*165*175mm	9.5kg	sì	A disposizione	6000times	5years
60V 20AH	330*175*220mm	19 kg	sì	A disposizione	6000times	5years
60V 30AH	407*175*235mm	25 kg	sì	A disposizione	6000times	5years
60V 40AH	407*175*235mm	28kg	sì	A disposizione	6000times	5years
60V 50AH	525*240*215mm	44kg	sì	A disposizione	6000times	5years
60V 120AH	420*360*550mm	84kg	sì	A disposizione	6000times	5years
60V 200AH	1000*600*182mm	156kg	sì	A disposizione	6000times	5years

Self-heated Function (Optional)
To relieve winter range anxiety in some freezing environment, the BMS can bring with
self heating function. Resistance heating rapidly warms the inside of battery.
Start heating temperature:≤0°C. Stop heating temperature:≥10°C.
Can improve battery charge / discharge performance.

Applicazione

La nostra fabbrica

ALL IN ONE is a lithium battery Manufacturer for over 15 years, recognized by customers from

Australia,Europe and North America.We offer Top quality with very good price for lithium lifepo4 batteries!



FAQ

1.Q: Supportate un ordine di esempio?

A: Sì, benvenuto per ordinare il campione, abbiamo magazzini negli Stati Uniti e in Europa, alcuni campioni possono essere spediti rapidamente.

2.Q: Il prodotto ha un BMS integrato?

R: Sì, BMS intelligente che include JBD/PACE/SmarTec integrati per garantire che le batterie siano gestite in modo intelligente.

3.Q: Can your company accept customized order ?

R: Naturalmente la personalizzazione è il nostro punto di forza.

4.D: Il pacco batterie può essere compatibile con gli inverter in commercio?

R: Sì signore, i nostri pacchetti sono compatibili con più di 20 marchi di inverter sul mercato tra cui Victron, Goodwe, Solis, Growatts, Voltronics, Deye e altri marchi famosi.

5.Q: Come è la Garanzia?

A: 5 years upto its usage.

6.Q: Hai delle certificazioni?

A: CE, UN38.3 and MSDS, Pack UL1973 is under processing.

7.Q: Come sono le modalità e i tempi di consegna?

A: 30-50 days for customized order. Monthly production capacity 6x40HQ for standard models.

8.Q: hai una vera fabbrica?

A: Yes, our factory is in Anhui. We welcome you to visit our factory.
